Terminal device for time and attendance tracking and access control
- Time and attendance tracking
- Access control
- Door control
- Information display
- Ethernet interface

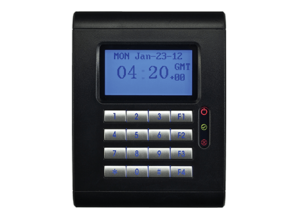

The TA-100 is a multifunctional terminal device that unifies time and attendance and access control systems by contactless smart cards. It simplifies tracking of employee log in and out times, as well as tracking times of absence during office hours.
When logging in our out, the card holder should bring the card closer to the device. To define the reason for leaving work during office hours, the user should press function and numeric buttons.
The graphic screen displays the status of vacation days or monthly attendance. Both individual and group messages can be displayed to the employees.
Besides attendance tracking, the terminal device can also be used for access control with advanced functionalities, such as room tracing or additional PIN entry.
The Ethernet interface of the device enables high-speed, real-time data exchange with the server and other devices in the system (peer-to-peer).
Time and attendance tracking
The TA-100 terminal device is the basic element of time and attendance system for automated data acquisition. Its basic functionalities are:
- Tracking of employee log in and out times, defining of reasons for absence during office hours
- Display of status of vacation days and monthly attendance at user inquiry or automatically at registration
- Display of individual or group messages to users
Access control
Besides attendance tracking, the terminal device can also control the access to protected areas, whereby the access rights can be changed at any time.
- Anti-passback
- The access on both sides can be controlled by connecting an additional reader to the device
- Automatic door opening when the fire alarm goes off by connecting to the fire signal from the fire alarm system
TECHNICAL SPECIFICATIONS
DESIGN
- Graphic display with backlight
- 4 + 2 function buttons
- PIN keyboard
- Integrated contactless reader
- Light and sound signaling
- Detection of unauthorized opening of the enclosure
CAPACITY
- 5.000/10.000/20.000/50.000 users
- > 65.000 event logs, saved in case of power loss
- Possibility of autonomous work, without a server
IDENTIFICATION/VERIFICATION
- Supported cards: 125 kHz EM (TA-100K model); 13,56 MHz (TA-100M model)
- Identification: card, card + PIN, PIN
WORKING CONDITIONS
- Temperature: from -10 °C to +65 °C
- Relative humidity: 5 % – 95 %
POWER SUPPLY
- 9 – 24 VDC, 1A or PoE (option – TA-100XP model)
DIMENSIONS
CONNECTIVITY
- 10/100 Mbit/s Ethernet interface for data exchange with the server and other terminal devices in the system (peer-to-peer)
- 1 x R5485 interface for connecting an additional reader and door control module, at the speed of 38400 / 19200 / 9500 bps
- 1 x R5232 interface for connecting a printer or a modem
- 2 relay outputs
- 2 digital inputs
OPTIONS / ADDITIONAL ELEMENTS
- Prerecorded audio messages
- Additional RFID reader
- Door controller (DM-2)
- Constant power supply
