Door Control Module

Greater flexibility and reliability

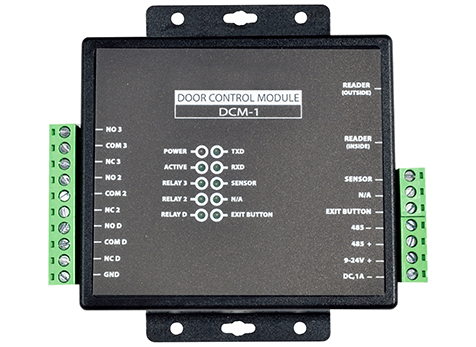

The Door Control Module (DCM-1) offers flexibility in system design and increases reliability.

Its main purpose is to manage and monitor the access control doors/barriers.

The DCM-1 communicates with the controller, to which all access control elements are locally connected (readers, press buttons, status and management of doors/barriers, etc.) This kind of system configuration offers greater reliability and possibility of structural cabling adherent to principles of economy.

In case of communication failure, the integrated functionality enables autonomous working mode and authorization of user access rights. The user safety is not compromised because the DCM-1 independently opens the door after the fire alarm goes off or the button is pressed.

TECHNICAL SPECIFICATIONS

CONNECTIVITY

• R5485 interface for connecting additional readers and data exchange with the controller
• Wiegand and Clock/Data interfaces for connecting two readers
• 4 relay outputs (5A / 30 VDC), expandable by additional 1/0 module
• 12 digital inputs, expandable by additional 1/0 module
• adjustable monitoring of induction loop

WORKING CONDITIONS

• Temperature: from -10 °C to +65 °C
• Relative humidity: 0 % – 90 %

POWER SUPPLY

• 9 – 24 VDC, 400 mA

DIMENSIONS

• 106 x 100 x 27 mm
